非隔离DC-DC

博大提供1-30A SMD type, through hole type Non-isolated dc dc converter。採用buck/step down設計,具高效率, 小體積, positive/negative output, Regulated output…等特色，SMD type更符合J-std-020d濕敏元器件標準。取得UL/EN/IEC 60950-1…相關安規認證，滿足客戶industrial / Telecom / railway / IPC …power選型應用或客規品訂製服務。
ꁆ ꁇ
넳 넲
系列

输出电流

(A)

输入电压

(VDC)

输出电压

(VDC)

隔离电压

(VDC)

 应用 尺寸
HSRP6 0.6

9-72

14-72

17-72

21-72

33-72

3.3

5

6.5

9

12

15

24

 None POL 12.0×8.6×13.4mm
HSR01 1A

9-72

14-72

17-72

21-72

33-72

3.3

5

6.5

9

12

15

24

 None POL 12.1×8.6×17.5mm
PSR1.0 1A

4.6-36

4.75-36

6.5-36

9-36

12-36

15-36

18-36

1.2

1.5

1.8

2.5

3.3

5

6.5

9

12

15

 None POL 11.7×7.5×10.1mm
PSR2.0 2A

3-5.5

4.6-36

4.75-36

6.5-36

9-36

12-36

15-36

18-36

1.2

1.5

1.8

2.5

3.3

5

6.5

9

12

15

 None POL 14.0×7.5×10.1mm
NSR01 1A

4.6-36

6.5-36

8-36

10.5-36

13.5-36

16.5-36

1.5

1.8

2.5

3

3.3

5

6.5

9

12

15

 None POL 11.7×7.5×10.1mm
LSR01 1A

3-5.5

3.8-5.5

4.6-36

4.75-36

6.5-36

9-36

12-36

15-36

18-36

1.2

1.5

1.8

2.5

3.3

5

6.5

9

12

15

 None POL 15.2×11.8×7.6mm
SSR01 1A

3-5.5

4.6-36

6.5-36

10.5-36

13.5-36

16.5-36

1.2~3.63

1.5~5.5

2.5~8.0

4.5~12.6

4.5~13.5

4.5~15.5

 None POL 15.2×11.8×7.6mm
ASR01 1A

-18~-32

-15~-32

-11.5~-32

-10.5~-32

-8~-32

-7~-32

-15

-12

-9

-8

-6

-5.2

-5

 None POL 11.7×7.5×16.5mm

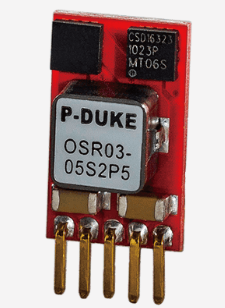

OSR03 3A

2.5~5.5

4.5~14

10~30

0.59~6.0

0.6~3.3

3.0~6.0

5.0~15

 None POL

9.4×6.6×15.5mm

10.4×6.6×16.5mm

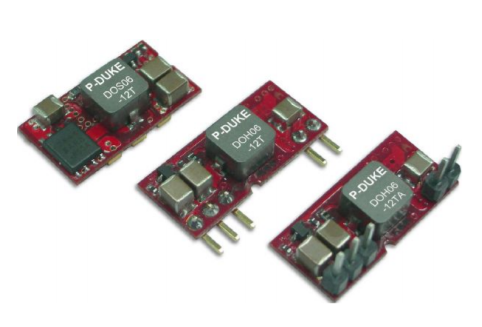

DO(H)S06-05T

DO(H)S06-12T

 6A

2.4~5.5

8.3~14

0.75~3.3

0.75~5.0

 None POL

20.3×11.4×6.4mm

22.9×10.2×10.1mm

DO(H)S10-05T

DO(H)S10-12T

 10A

2.4~5.5

8.3~14

0.75~3.3

0.75~5.0

 None POL

33×13.5×7.6mm

50.8×12.7×7.2mm

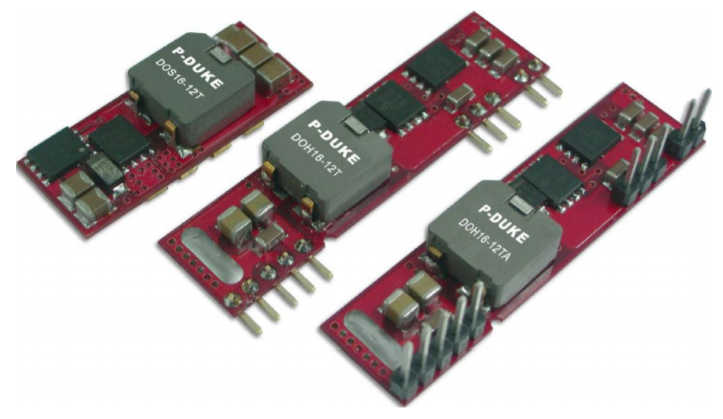

DO(H)S16-05T

DO(H)S16-12T

 16A

2.4~5.5

8.3~14

0.75~3.3

0.75~5.0

 None POL

33×13.5×7.6mm

50.8×12.7×7.2mm
DO(H)S30 30A

4.5~5.5

6.0~14

0.8~3.63

0.8~5.5

 None POL

33×13.5×9.4mm

50.8×12.7×9.4mm
